EDGESWITCH UBIQUITI SWITCH DI RETE CON 16 PORTE LAN, ALIMENTAZIONE POE, DUE PRESE SFP E FUNZIONE ROUTING

EDGESWITCH UBIQUITI SWITCH DI RETE CON 16 PORTE LAN, ALIMENTAZIONE POE, DUE PRESE SFP E FUNZIONE ROUTING
Codice: UBNT-EDGE-SW16 € 339,00 (€ 277,87 + IVA)
Non Disponibile
EAN: 0810354023224
Spedizioni e Costi
Non Disponibile

Prodotto:

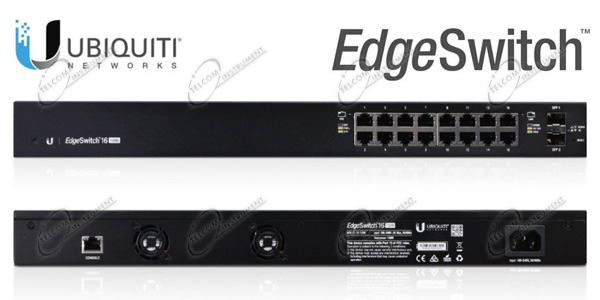

Ubiquiti EdgeSwitch Carrier x16 porte LAN Gigabit, switch PoE 802.3AF programmabile, e due porte SFP.

Codice: UBNT-EDGE-SW16

Foto

Powerful Enterprise Switch Models

The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 16-port models and up to 70 Gbps for 48-port models.

Enterprise-Class Features

The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Foto

Convenient PoE+ Support

The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Breakthrough Value

The EdgeSwitch™ provides top price/performance value: a full-featured, enterprise-class switch starting at $399 USD MSRP.

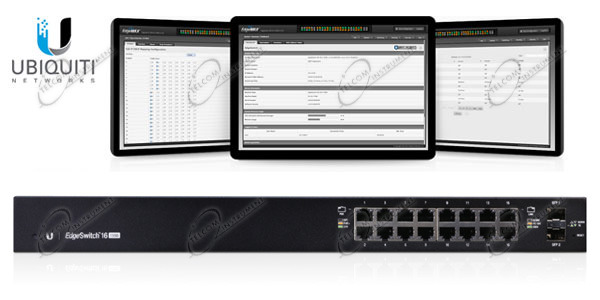

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Foto

Contenuto della Confezione.

  • n.1 Ubnt Edge Switch x16;
  • n.1 Cordone di alimentazione;
  • Viti e Supporti per montaggio Rack;
  • Manuale in inglese.

Caratteristiche.

  • Switch Ubiquiti EdgeSwitch16-150W;
  • Max. Power: 150W;
  • Managed Switch;
  • 16 Porte di Rete LAN Gigabit 10/100/1000 Mbps;
  • 2 Porte SFP;
  • Supporto POE standard:
    - 48V IEEE 802.3af,IEEE 802.3at (Pins 1, 2+; 3, 6-);
    - 24V Passive PoE (Pins 4, 5+; 7, 8-);
  • Capacità di commutazione 52 Gbit/sec;
  • Throughput 38.69Mpps;
  • Tavola MAC Dimensioni: 8000 voci;
  • Led di stato: Activity,Link,PoE;
  • Alimentazione 100-240V AC 50-60 Hz;
  • Certificatione CE;
  • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV;
  • Rack-Mount Yes, 1U High;
  • Shock and Vibration ETSI300-019-1.4 Standard;
  • Management Interface
    - n.16 10/100/1000 Mbps RJ45 Ethernet Ports;
    - n.2 1Gbps SFP Ethernet Ports
    - n.1 RJ45 Serial Port, Ethernet In/Out Band
  • Dimensioni: 485 x 43.7 x 285.4 mm.
